Muhammad Nasir1, Muhammad Muzamil Aslam2, Zahoor Ahmed3*,

Muhammad Tahir Zaman1, Maryam Rani1 , Sidra Maqbool1
1Department of CS&IT, Superior University Lahore, Punjab, Pakistan

Received: 08-Dec-2021 / Revised and Accepted: 29-Dec-2021 / Published On-Line: 03-Jan-2022



5G mobile broadband infrastructure creates various safety concerns. We must compare 5G Mobile Wi-Fi Networking to older mobile networks (4G). We’ll start with 5G broadcaster characteristics, then 5G cellular security. We’ll look at risks and security. The latest advancements in 5G mobile network security must be discussed, including device identification, network accessibility, data encryption, protection, and intrusion prevention. The 5G Mobile Wireless Network incorporates new security measures due to IoT, mMIMO, device-to-device communications, and software defined networks (SDN). Such innovations and research characterize 5G Mobile Wireless Security. Currently, new penetration detection technologies are necessary. A brief summary of 5G safety management is provided. For example, the Internet of Things (IoT) may leverage breakthrough technology concepts to provide great digital services internationally. SDN and NFV are common solutions that use cloud technologies like Smartphone Cloud Computing. Protecting future mobile communications advances and customers is important. Also discussed are SDN and NFV as well as consumer security. Concerns about 5G network security will be addressed in this study. 5G will provide pervasive network service, improved customer mobility, and low-cost device connection (e.g., IoT). Information technology, SDN, and NFV are crucial 5G accelerators. Aside from privacy problems, these innovations represent major safety dangers. This article also addresses 5G’s data security challenges. We also discuss current and future 5G safety alternatives.

Keywords:  Security; 5G Security; SDN; NFV; Cloud; Privacy; Standardization; Cloud; Privacy; Communication Channels


Fifth-generation (5G) information innovation, like millimeter wave communication (mmWave), massive multiple-input- multiple-output (MIMO), and non-orthogonal-multiple-access (NOMA), is performing a critical function in boosting current Internet-of-Things (IoT) applications. Because IoT is used in almost each aspect of daily lifestyle, the safety and data protection of 5G IoT cellular connections is a significant issue. Physical layer security (PLS), Which protects data authenticity by leveraging the transmission format’s inherent unpredictability, is a potential cellular safety approach for IoT [1].

The 5th Generation Wireless System is a current production of smartphone systems (5G). It isn’t simply a new edition or step forward from existing 4G networks; it’s far more. It will provide the globe with fresh programming potential and operational problems. Until 2020, total mobile systems will be used by over than Fifty billion people, resulting in a massive rise in information flow relative to the existing situation. The current cell connection (4G) would not be capable or adequate to meet these demands, necessitating the development of 5G mobile broadband. The scientists’ main attention is on higher speed than 4G, thick networking equipment, and novel applications such as Device to Device Communication (D2D), massive Multiple Input Multiple Output (mMIMO), and so much more. 5G upgraded capabilities, in particular, target for 1-10Gbps communications, 10-100x linked gadgets, nearly 100% stability, 90% reduced computational energy usage, and enhanced batteries capacity up to 10 years for reduced energy usage equipment. Heterogeneous Network (HetNet), mMIMO, millimetre wave (mmwave) [2], D2D communication , and M2M communication are some of the additional techniques utilized in 5G to fulfil these objectives. Figure 1 [1] shows the overall design of 5G cellular networks. 5G will offer more than just internet and phone communications. However, there are certain uses for vehicle-to-vehicle networking, such as fitness apps, knowledgeable towns, and industrial stratification. These modern inventions, architectures, and apps introduce unique safety concerns, which must be addressed [1].

If we examine the peculiarity of 5G networks in IoT networks, however, PLS innovations face either novel problems or possibilities. Latest 5G wireless methods, on the one side, introduce certain current and persistent bodily level risks to 5G IoT apps. Massive MIMO, for instance, requires precise channel state information (CSI) in order to choose appropriate beam forming. A aircraft assailant, who can replicate and transmit the identical pilot messages as authorised consumers, might undermine station estimates during the channel training phase (LUs). As a function, the assailant may get an unfair edge in the subsequent transmission stage. Except for large MIMO, the flight engineer assault particularly affects NOMA that can enhance spectrum performance and allow enormous connection for 5G IoT systems. Because a NOMA broadcaster may interact with several LUs in the similar station at the exact time with excellent CSI, it might be easier readily influenced and deformed by a flight engineer assault. Furthermore, due of the entangled photon and complex broadcast patterns of NOMA, detecting and defending against flight engineer assaults becomes very difficult [2].

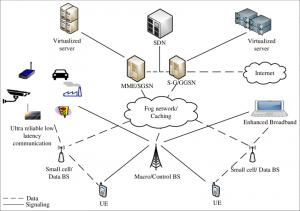

Fig. 1:  General Architecture of 5G Wireless System

Moreover, safety flaws have existed in cellular networking technologies since their beginnings. Mobile devices and cellular platforms were attacked for illicit duplication and masquerade in the first generation (1G) cellular systems [3]. Text spamming developed widespread in the second generation (2G) of cellular connections, not just for ubiquitous assaults but also for inserting false information or advertising unwelcome commercial material. IP-based networking facilitated the transfer of Digital safety risks and issues into the cellular realms in third-generation (3G) cellular connections. The fourth Generation (4G) wireless carriers permitted the expansion of electronic gadgets, digital media flow, and innovative applications into the cell realm as the need for IP-based networking grew [4]. As a result, the risk situation has become less complex and reactive. With the introduction of fifth-generation (5G) wireless networks, safety attack pathways will be larger than ever previously, with increased protection concerns. As a result, it’s critical to emphasize the safety risks that present not just owing to the Wi-Fi character of cellular systems, but also in the prospective innovations that will be critical for 5G. The remainder of the article is laid out as obeys: In Section 3, the major safety problems are described, accompanied by safety remedies for the emphasized safety concerns. Section 4 summarizes the efforts related to 5G safety standards at the moment of authoring this article, and Section 5 wraps up the discussion [4-6].


Because 5G will link every element of existence to network technologies, it will necessitate sophisticated safety designs and technologies. As a result, we explore and emphasize the critical safety and protection problems in 5G networks (shown in Figure 2), as well as proposed approaches that might contribute to safe 5G networks. The following are the basic issues in 5G identified by Next Generation Mobile Networks (NGMN) and widely studied in the publications:

  • Large amount of final gadgets and innovative items cause a surge in network traffic (IoT).
  • Radio interface safety: Encrypt secrets for radio access technologies are supplied through unsecure routes.
  • Control plane consistency: The user information aircraft has no cryptographic dignity security.
  • Network safety that is required: Service-driven limitations on the safety structure that result to the deployment of safety countermeasures that is voluntary.
  • Roaming safety: When customers wander through one provider connection to the other, their safety characteristics are not changed, resulting in safety breaches.
  • Infrastructure denial of service (DoS) assaults: exposed networking management components and unsecured command platforms
  • Signaling storms: Transnational management networks that require cooperation, such as the Third Generation Partnership Project (3GPP) standards’ Non-Access Stratum (NAS) layer.
  • Denial-of-service (DoS) assaults on end user gadgets: On consumer gadgets, there are no safety protections for designed to operate platforms, apps, or administrative information.

SA WG3, a 3GPP discussion organization, is primarily interested in establishing safety and data protection criteria, as well as establishing safety structures and standards for 5G. The Open Networking Foundation (ONF) is a non-profit organization devoted to accelerate the implementation of SDN and NFV by publishing scientific requirements, particularly safety requirements [7].

Besides wireless performance, NGMN’s 5G model concepts include building an uniform compassable base and simplifying management and administration through the use of new computer and networking technologies. As a result, we concentrated on the safety of the innovations that would comply with NGMN’s model standards, such as portable platforms, SDN, and NFV, as well as the information connections that will be utilized by or in among these innovations. We’ve also emphasized the possible privacy problems, given the growing awareness about user security [7]. Figure 1 depicts the safety problems, which are listed in Column 1. Table 1 shows the many forms of safety risks and assaults, as well as the specified parts or activities in a system and the systems that are more vulnerable to assaults or dangers. The chapters that precede provide a quick overview of these safety issues. The sections that follow provide a quick overview of these security issues [8].

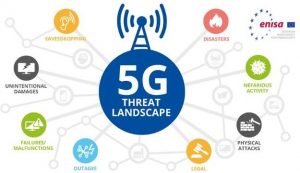

Fig. 2: Threat landscape in 5G network

TABLE I: Security challenges in 5G technologies


Target point





















Signaling storm







Slice theft

SDN switches and controllers






Configuration attack


Control channels







Open air interface






TCP lavel attack

Unencrypted channels






Technologies used in 5G

The approaches that can be utilised in 5G communication network are discussed in this section. We’ll offer a short look at few of the many possibilities and uses that these new technologies provide [8].


HetNet is the finest solution for providing great penetration in 5G. HetNet features a variety of qualities, like larger productivity, greater service, and the greatest Energy Efficiency (EE) and Spectrum Efficiency (SE) efficiency (SE). Considering such advantages, HetNet is highly susceptible to spying with respect of client devices than a solitary traditional network. The HetNet has a large frequency of tiny units, and transfer will deteriorate as a result of the continued transfer of smaller units [8].


D2D transmission refers to the ability of a gadget to connect with some other gadget absent the use of a ground unit. The effective utilization of frequency is enabled via Spectrum sharing. It also aids in the reduction of Base Station load. Dynamic Spectrum Access (DSA) is commonly used to increase frequency availability, although it introduces vulnerabilities like blocking [9]. The main common method of providing safety to D2D transmission is energy management through collaboration among D2D stations. Network accessibility and energy management, in addition to collaboration, can be utilized to secure D2D transmission [9].


Utilizing a huge amount of transmitters, we can obtain excellent Energy Efficiency and Spectrum Efficiency for the system. We can obtain massively great performance by employing a vast amount of transmitters. It can also improve system safety, however these big transmitters will create severe disruption with one another, resulting in uneven efficiency. This leads us to other technique known as laser shaping. In large MIMO networks, though, surveillance attacks can constitute a serious concern. In order to combat this, PLS might perform a key function in 5G [9].

Intrusion detection techniques

In a connected system, safety is usually provided by one of 2 techniques. The initial is a barrier that is installed on entrances, circuit breaker, or modem and the other is an incursion monitoring device, which is activated when harmful information enters the connection and bypasses the security structure. However, in upcoming cellular connectivity systems, every unit will be required to include a safety system. Owing to diverse systems, every ultimate client requires an incursion monitoring method. Therefore, if the above-mentioned preventive mechanism, such as identification, is abused, safety is critical. IDS methods or mechanisms, old and newer, will really be necessary [9].

 Physical layer threat in 5G

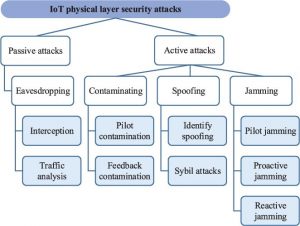

Fig. 3. Security threats in 5G IoT physical layer

5G modern communications techniques have the potential not only to expand the doorway to physiological dangers in IoT networks, however simply to give novel ways to regulate them. On the one extreme, certain upcoming 5G cellular methods may be worse vulnerable to physiological level assaults than current ones. Large MIMO and NOMA transmissions, for instance, are extremely vulnerable to operator infection assaults. Certain physiological risks, on the other extreme, are mitigated by 5G mobile connectivity technology. For example, in huge MIMO, modulation can be utilized to lower the threat of spying. In this part, we’ll look through the most common physiological dangers in IoT systems, categorizing them according on the assailants’ goals, such as spying, polluting, impersonating, and blocking [10].

We’ll also go over the PLS remedies that go along with them, as well as the influence of 5G cellular techniques on such physiological dangers.


Attempts are made to capture private data by the assailants. Because the assailants do not provide any signals, authorized transducers have a difficult time detecting or locating the eavesdropping. Depending on the primary method of the assailant, this physiological danger may be split into two categories: intercepting and network analyses [11].

  • Interception: The more prevalent attacks against IoT gadget security are tracking and wiretapping. The assailant might readily uncover genuine conversation by spying the local WiFi surroundings. Phone tapping can be successful over security defense when communication carries manage information about the sensory system setup that includes possibly greater specific data than available via the position site.
  • Traffic analysis: Cryptographic techniques can decode crucial data in lawful transmission. The assailant is capable to receive the sent transmission in this scenario, but not the critical data. Network monitoring, on either hand, could be beneficial for analyzing transmission trends in order to carry out various types of assaults. The actions of IoT gadgets may disclose sufficient data for an assailant to exploit to do unwanted damage to IoT systems [10].


Infecting assailants attempt to poison the route estimate stage in order to gain unfair benefits in the subsequent transmission stage. This sort of assault may be split into aircraft and response infection based on various route estimate phases [11].

Pilot contamination: In pilot contaminating attacks, a smart active attacker is assumed who has precise prior knowledge of pilot information. During the channel training phase, the adversary can send the same pilot signals as that of LUs to confuse AP or BS. Therefore, the AP or BS will produce an incorrect CSI prediction among itself and LUs. This incorrect CSI data will in return generate inaccurate quantization, spread spectrum or successive interference cancellation (SIC) only at AP or BS.

Feedback contamination: Current 5G beam-training methods, like IEEE 802.11, ad, are tasked with determining the best transmitter guidance. The transducer receives the highest transmitted exploring session and selects the associated light for broadcasts. Assailants can send falsified input to the broadcaster, causing it to direct its lasers toward assailants except the designated recipients. Unless the broadcaster guides the lasers in an unexpected orientation, it may result in a denial-of-service and stop the beam-training procedures from completing the connection procedure [12].

PLS strategies to counter contaminating

In principle, physical layer authentication (PLA), comprising flight engineer assault identification and radio-frequency (RF)/hardware-based PLA, can be utilized to flight engineer contaminating assaults. Current flight engineer assault identification methods focus observation through the use of unique signs, like captains or beam formers. PLA depending on RF/hardware is focused on the reality that various Wi-Fi transmitters produce RF waves with distinct characteristics in the analogue and modulator realms, which may be used to fight compromising assaults [12].


Malicious assailants insert fake identification data into real conversations in order to unite or disrupt them. In the event of broadcast stage among transmitters, a mocking assailant can provide a deceptive signals with greater energy, or watch the real broadcaster for transmitting a counterfeit signal among two valid frequencies. Identify spam detection and Sybil assault are the 2 most common types of malicious threats [13].

 Identity spoofing: In IoT systems, identity hacking operations are simple to initiate. An identity hacking assailant can impersonate other genuine IoT equipment by utilizing a false identity like the original customer’s media access control (MAC) or internet protocol (IP) location. The assailant could acquire unauthorized connection to the IoT system and conduct a highly sophisticated assault, like man-in-the-middle or denial-of-service operations [13].

Sybil attacks: A malicious user can impersonate another sites or declare fake names in the Network threats, and the assailant can establish an unlimited amount of extra site accounts with just one hardware machine. IoT networks can create incorrect statistics in the context of Sybil assaults, and consumers may get spam and lost their security [13].

PLS strategies to counter spoofing

In PLS methods, PLA is now the primary strategy for countering mimicking assaults. Aside from RF/hardware- based PLA, stream PLA methods may be used to identify identity spoofing or sybil assaults, and can function even with granular data like received signal strength (RSS). If an assailant is at a separate place than the genuine equipment, channel/location-based PLA methods can identify it quickly by analyzing the transmissions’ RSS fingerprinting. Even now in Sybil operations, in which an assailant may send packages utilizing numerous personalities, channel/location-based PLA methods can identify this sort of assault by detecting that detected signs belonging to various personalities are tangentially broadcast from the similar place[14].


A jammer assailant’s goal is to use sound to disrupt lawful conversations. To do this, the attacker might send radio transmissions over a cellular network indefinitely to disturb conversation by lowering the signal to noise ratio (SNR). At the base station, it can lead to denial-of-service assaults. In principle, there are 3 different types of jamming incidents: pilot jamming, proactive jamming, and reactionary jamming.

  • Pilot jamming: The pilot jamming assault is a unique type of jamming threat used throughout the route learning stage. Its goal is to tamper with valid transmission even if the pilot routines aren’t perfect. An opponent can conduct a pilot jamming assault with just previous information of the flight duration and pilot pattern codebook. Because the assailant only has to disrupt the pilot signals, not the whole connection, this blocking assault can be highly power effective [14].
  • Proactive jamming: Whether or not legal mobile network is present, aggressive jamming assailants could also sent out jamming or interrupting frequencies. To preserve power and switch among rest and blocking modes, assailants intermittently broadcast random bits or regular parcels into systems. Spot jamming, sweep jamming, barrage jamming, and misleading jamming are subcategories of this form of jamming.
  • Reactive jamming: Assailants that use responsive jamming can observe the genuine network’s activities. When there is action on the route, the opponent puts out an unclear that collides with the current signal [15].

PLS strategies to counter jamming

Frequency-hopping spread spectrum, direct sequence spread spectrum, and ultra-wide-band technology are all examples of PLS techniques for dealing with jamming assaults. Conversely, jamming testing methods, reactive countermeasures, and proactive countermeasures can be used to combat jamming assaults. The monitoring approaches are not capable of dealing with jamming on their own, but they can identify jamming assaults quickly and offer useful information for enhancing jamming security with additional defenses. Only when a jamming assault is detected by the jamming detector may responsive measures be used. Furthermore, preventative measures are more energy- intensive than reactionary defensive measures since they execute a constant action to combat jamming attacks, whatever the jamming is [13].


Security Challenges in SDN and NFV

SDN centralizes system management platform and allows transmission systems to be programmable. These two destructive qualities, on the other hand, open the door to system breaking and spoofing. For instance, DoS assaults will prefer centralized managed, and revealing crucial Apps (APIs) to undesired applications might bring the entire system offline. The SDN administrator alters information route circulation regulations, allowing administrator activity to be clearly identifiable. Because the control system is an observable object on the system, it is a popular target for DoS attacks.

Because of overloading assaults, centralized system supervision can also become the manager a barrier for the entire system, as shown in [12-15]. Because many system operations may be represented as SDN apps, malevolent programs that are given permission to a system might cause havoc.

Despite the fact that NFV is critical for upcoming transmission systems, it faces standard safety issues like confidentiality, stability, validity, and non – repudiation. In terms of their application in cellular operators, existing NFV systems do not give enough safety and separation for standardized telephony applications. The changing feature of Virtual Network Functions (VNFs), which contributes to setup mistakes and consequently safety breaches, is one of the most recurring barriers to the deployment of NFV in cellular operators. Figure 1 highlights other problems, but the most pressing one is that if the virtualization is hacked, the entire system might be affected [12-15].

Security Challenges in Communication Channels

Drones and air traffic management, cloud-based virtual reality, linked cars, advanced manufacturing, cloud-based robotic systems, transit, and eHealth will all be part of the 5G environment. As        a                      result,  the       apps require     safe communications networks that can handle more regular identification and the transmission of increasingly critical information. In addition, numerous additional companies will participate in these offerings, including public agencies, mobile network operators (MNOs), and cloud providers. Many levels of encapsulating user authentication are necessary both at system entry and application stages in such an         environmentally,         and      regular verification among participants is necessary. Network operators used specialized transmission streams depending on GTP and IPsec tunnels prior to 5G technology [15]. Attacking transmission configurations such as X2, S1, S6, S7, which are exclusively utilized in cellular operators, necessitates a high degree of knowledge. SDN-based 5G systems, on the other hand, will use standard SDN connections instead of specialized connectors. Because these APIs are accessible, the number of potential assailants will grow. The information route, command route, and inter- controller tv station are the 3 channels of communications in SDN-based 5G cellular operators. These routes are secured in the present SDN network by TLS (Transport Layer Security)/ SSL (Secure Sockets Layer) transactions. TLS/SSL interactions, on the other hand, are particularly susceptible to IP level assaults and without robust verification methods [15].

Privacy challenges in 5G

Information, location, and reputation might all pose substantial security problems from the recipient’s standpoint prior to actually installing many mobile device programs, the user’s private data is required. The way information is kept and for which reasons it will be utilized is infrequently mentioned by program designers or corporations. Subscriber position security is primarily targeted by dangers like linguistic data assaults, timing assaults, and border assaults. Service station choice methods in 5G mobile networks can expose position security at the application layer [16]. Capturing assaults on the International Mobile Subscriber Identify (IMSI) of a subscriber’s Client Devices could be utilized to disclose a provider’s personality (UE). Such assaults may also be carried out by installing a false ground station that the UE considers to be the preferable access point, causing customers to reply with their IMSI [16].


This part focuses on safety remedies for the privacy concerns discussed in the preceding part. The difficulties of flashing system flow can be overcome either by introducing additional facilities or enhancing the usability of current networks using cutting-edge technology. We think that emerging techniques like as SDN and NFV will more premium address these issues. SDN allows for the task of run-time resources, such as speed, to specific portions of the system as needed [15]. The administrator in SDN can receive system metrics from system devices via the south-bound API to detect whether load rates are increasing. Operations from the central networking center may be moved to the boundary utilizing NFV to fulfil customer necessity. To deal with rapid internet load, real segments of the system might be devoted solely to locations with a large size of UEs [17].

The safety of wireless connection data remains a problem that necessitates safe access policy, such as the suggested Host Identity Protocol (HIP)-based approach in. End-to-end encrypting methods can also be used to ensure consumer plane security. Utilizing centralized platforms with worldwide awareness of individuals’ actions and system flow behavior, such as SDN, traveling protection and internet required safety regulations may be accomplished. Because of the increased connection of UEs, tiny access points, and significant consumer roaming, signaling hurricanes will be increasingly problematic [15]. C-RAN and edge processing are viable solutions to these issues, but their structure must take into account the rise in signaling flow as an essential component of upcoming systems, as outlined by NGMN. The next part discusses methods for DoS or overload assaults on network management components [17].

Security Solutions for Mobile Clouds

The majority of MCC’s suggested safety solutions center on the tactical utilization virtual machines, the redesigning of safety features, and flexible information processor unit distribution. Because every end-node communicates to a distinct unique example in the internet through a Virtual Machine, digitalization is a logical choice for protecting cloud storage (VM). This ensures safety by isolating each subscriber’s actual link from that of other customers. Likewise, customer restrictions will ensure that cloud services techniques be used safely [18].

Despite previous systems that allow everyone with a sharing connection to watch such internet video broadcasts, our design only allows approved watchers access. Actual methods, like learning-based systems, are much more beneficial than general ones for particular safety concerns like HX-DoS. To identify and prevent risks, the learning-based system, for instance, takes a specific amount of package fragments and analyses them for different recognized properties. Anti-malware software might help safeguard portable devices and increase general resistant to malicious software. Anti-malware software is either downloaded on the smartphone device or is maintained and provided via the internet. Protecting stretchy mobile apps on smart phones for cloud technology, light – weight changing certification generation method for consumer identification safety, in-device locational shielding process for security safeguard, and Mobi Cloud, a secured data structure for phone communications and data, are some of the models created for software development. C-RAN, a cloud-based architecture for optimizing and providing safer Radio Access Networks (RANs) for    5G    clouds,    has    been    suggested.     The researchers highlighted how C-RAN may improve the end-to- end efficiency of MCC applications in the next cellular networks continuously [16]. To fulfil this requirement, C-RAN must offer a greater amount of consistency similar to classical electrical communication systems such as Synchronous Digital Hierarchy (SDH), and one reason to do so is via the widespread acceptance of processes such as fiber ring network protection, which are currently primarily used in the factory and power fields [18].

Security solutions for NFV and SDN

SDN allows fast danger detection via a process of collecting information from internet services, conditions, and activities, thanks to the conceptually centralized management plane with worldwide system perspective and extensibility. As a result, the SDN design facilitates digital forensics, safety policy changes, and safety agency placement by supporting extremely reactive and proactive safety tracking, flow analyzing, and response system. Due to worldwide system accessibility, safety processes like security systems and Intrusion Detection Systems (IDS) could be used for particular flow by modifying the routing table of SDN switching devices. VNF safety via a safety arranger, in accordance with the ETSI NFV design. The suggested architecture protects both digital activities in a multi-tenant ecosystem and real items in a communications system. Proposes utilizing trustworthy technology to offer hardware-based security for sensitive data and identify malicious programs in virtualized settings by performing remote confirmation and authenticity testing of simulated platforms and hypervisors [19].

Security Solutions for Communication Channels

Not just to avoid the mentioned safety risks, but to preserve the       extra    benefits of SDN like centralized            policy administration, extensibility, and worldwide networking  status information, 5G requires adequate transmission route safety. In today’s communication systems, like 4G-LTE   [25], IPsec is the largest widely utilized safety technology for securing communications systems. With minor adjustments, IPsec tunneling may be used to protect 5G routes of transmission. Furthermore, different safety methods, like identification, authenticity, and decryption, are integrated to offer safety for LTE transmissions. But, excessive energy usage, significant overhead, and a shortage of cooperation are the primary difficulties in these present safety methods. As a result, these technologies aren’t suitable for 5G crucial network connectivity. Consequently, novel safety methods like physical layer safety employing Radio-Frequency (RF) fingerprints, asymmetrical safety methods, and constantly changing safety settings depending on current circumstances can be used to provide a better degree of protection for important transmission. Encryption methods such as HIP can also be used to protect end-to-end consumer transmission [20].

Security Solutions for Privacy in 5G

5G should have data protection techniques, in which security is addressed first from start of the network and so many essential elements are constructed. A dual computing solution is needed, in which network carriers can collect and manage highly delicate information privately while storing and processing least delicate information in cloud computing. Providers will get more power and accessibility over information, and will be able to select where and how to distribute it. Conversely, with 5G, service-oriented security may evolve to better feasible security solutions. Improved systems for accounting, information shortage, visibility, accessibility, and authentication will be required for 5G [21]. As a result, stringent security rules and policies must be considered throughout the standardization of 5G. 3 sorts of supervisory approaches can be identified. One is governmental action, which mostly consists of country- specific security rules enacted by states and multi-national organizations like United Nations (UN) and the European Union (EU). The level 2 is the industrial sector, where numerous companies and organizations, like as 3GPP, ETSI, and ONF, collaborate to establish the greatest principals to safeguard consumers Privacy. Thirdly, laws at the user grade guarantee that desirable security is protected by taking into account customer needs. For positional security, anonymity- based approaches must be used, in which the consumer’s true identification is disguised and anonymity are used instead. In this scenario, encrypted communication techniques are also beneficial; for example, messages can be secured before being sent to a Location-Based Services (LBS) supplier. Deception methods, in which the value of location data is lowered in terms of protecting security properties, are also helpful. Furthermore, area cloaking-based techniques are extremely effective for dealing with some of the most common area security assaults, like scheduling and border assaults [22].

Observation and existing work

There is a tremendous research being done in 5G, but the standardization procedure is still in its early stages, so there is a huge amount of room for additional study, particularly in the safety area. There are numerous possible routes for this relatively young and developing innovation. The list below provides an overview of what may be needed to bring 5G transmission more dependable and safe than it has ever been. We have just discussed a few approaches in this study; more additional techniques are on the horizon [22]. There is a huge amount of research to be completed in order to ensure safety, particularly in the realm of invasion identification methods [23-25].


To address the issues of enormous connection, adaptability, and affordability, 5G will employ portable platforms, SDN, and NFV. With all of their advantages, these innovations also come with safety risks. As a result, in this article, we’ve identified the major safety problems that, if not handled correctly, might become much more dangerous in 5G. We’ve also discussed the safety procedures and methods that may be used to address these issues. The security risk pathways cannot be completely realized at this moment given the limited independent and combined implementation of these systems in 5G. Conversely, when there are more consumer gadgets, the transmission protection and safety issues will become more apparent. IoT, for example, is linked, and 5G offers a current range of applications. To summarize, it is extremely probable that when novel 5G technology and applications are deployed, new forms of safety risks and difficulties will emerge. But, addressing these issues from the beginning of the designing process through implementation will reduce the risk of protection and security breaches.

The influence of 5G wireless systems on physical-layer risks and PLS solutions in 5G IoT systems was the subject of our research. We looked at the features and physical-layer risks in 5G IoT systems and classified them according to the goals of the assailants. We spoke about how to use complete PLS remedies in IoT networking with 5G and future wireless technologies. The outstanding challenges surrounding the PLS for IoT inside the 5G structure were discussed, as well as relevant solutions and ongoing study initiatives. Understanding the related physical-layer security concerns and also feasible PLS remedies underneath the broad 5G wireless transmission methods is critical for the growth of IoT. The major goal of this research is to look at the safety issues and suggest possible PLS solutions for 5G IoT systems. We believe that this paper will encourage more study in this field. Several emerging innovations are being launched in industries as a result of the diverse character of 5G cell wireless networks. Several novel technological utilize applications will have to be thoroughly investigated. Networking segmentation, Software Defined Networks (SDN), Network Function Virtualization (NFV), mobile cloud computing, and mobile ad-hoc networks for invasion identification will all face new problems in the upcoming cellular wireless connection. Given the diverse character of 5G, a large amount of effort is being done to provide invasion management, but incursion identification and mitigation would also be a big job. We hope that this research will aid you in comprehending 5G terminology and point you in the right path for future research.


[1]        M. Agiwal, A. Roy, and N. Saxena, “Next Generation 5G Wireless Networks: A Comprehensive Survey,” IEEE Communications Surveys Tutorials, vol. 18, no. 3, pp. 1617–1655, thirdquarter 2016.

[2]        N. Alliance, “NGMN 5G white paper,” Next Generation Mobile Networks, White paper, 2015.

[3]        3GPP. (2017, May) SA3-Security. The Third Generation Partnership Project (3GPP). [Online]. Available: plenary/54-sa3-security

[4]        ONF. (2013) SDN Security Considerations in the Data Center. Open Networking Foundation. [Online]. Available:

[5]        P. Kulkarni, R. Khanai, and G. Bindagi, “Security frameworks for mobile cloud computing: A survey,” in 2016 International Conference. Electrical, Electronics, and Optimization Techniques (ICEEOT), March 2016, pp. 2507–2511

[6]        S. S. Vikas, K. Pawan, A. K. Gurudatt, and G. Shyam, “Mobile cloud computing: Security threats,” in 2014 International Conference on Electronics and Communication Systems (ICECS), Feb 2014, pp. 1– 4.

[7]        M. L. Polla, F. Martinelli, and D. Sgandurra, “A Survey on Security for Mobile Devices,” IEEE Communications Surveys Tutorials, vol. 15, no. 1, pp. 446–471, First 2013.

[8]        H. Suo, Z. Liu, J. Wan, and K. Zhou, “Security and privacy in mobile cloud computing,” in 2013 9th International Wireless Communications and Mobile Computing Conference (IWCMC), July 2013, pp. 655– 659.

[9]        A. Chonka and J. Abawajy, “Detecting and Mitigating HX-DoS Attacks against Cloud Web Services,” in 2012 15th International Conference on Network-Based Information Systems, Sept 2012, pp. 429–434.

[10]      V. Sucasas, G. Mantas, and J. Rodriguez, “Security Challenges for Cloud Radio Access Networks,” Backhauling/Fronthauling for Future Wireless Systems, pp. 195–211, 2016.

[11]      I. Ahmad, S. Namal, M. Ylianttila, and A. Gurtov, “Security in Software Defined Networks: A Survey,” IEEE Communications Surveys  Tutorials, vol. 17, no. 4, pp. 2317–2346, Fourthquarter 2015.

[12]      S. Shin, V. Yegneswaran, P. Porras, and G. Gu, “AVANT-GUARD: Scalable and Vigilant Switch Flow Management in Software-defined Networks,” in Proceedings of the 2013 ACM SIGSAC Conference on Computer & Communications Security, ser. CCS ’13. New York, NY, USA: ACM, 2013, pp. 413–424. [Online]. Available:

[13]      P. Fonseca, R. Bennesby, E. Mota, and A. Passito, “A replication component for resilient OpenFlow-based networking,” in 2012 IEEE Network Operations and Management Symposium, April 2012, pp. 933– 939.

[14]      D. Kreutz, F. M. Ramos, and P. Verissimo, “Towards Secure and Dependable Software-defined Networks,” in proceeding of the second  ACM SIGCOMM workshop on Hot Topics in Software Defined Networking, ser. HotSDN ’13. New York, NY, USA: ACM, 2013, pp. 55–60. [Online]. Available:

[15]      A. van Cleeff, W. Pieters, and R. J. Wieringa, “Security Implications of Virtualization: A Literature Study,” in 2009 International  Conference on Computational Science and Engineering, vol. 3, Aug 2009, pp. 353–358.

[16]      S. J. Vaughan-Nichols, “Virtualization sparks security concerns,” Computer, vol. 41, no. 8, pp. 13–15, Aug 2008.

[17]      M. Monshizadeh, V. Khatri, and A. Gurtov, “NFV security considerations for cloud-based mobile virtual network operators,” in 2016 24th International Conference on Software, Telecommunications and Computer Networks (SoftCOM), Sept 2016, pp. 1–5.

[18]      H. Hawilo, A. Shami, M. Mirahmadi, and R. Asal, “NFV: state of the art, challenges, and implementation in next generation mobile networks (vEPC),” IEEE Network, vol. 28, no. 6, pp. 18–26, Nov 2014.

[19]      W. Yang and C. Fung, “A survey on security in network functions virtualization,” in 2016 IEEE NetSoft Conference and Workshops (NetSoft), June 2016, pp. 15– 19.

[20]      M. Liyanage, A. Gurtov, and M. Ylianttila, Software Defined Mobile Networks (SDMN): Beyond LTE Network Architecture. John Wiley & Sons, 2015.

[21]      M. Liyanage, A. B. Abro, M. Ylianttila, and A. Gurtov, “Opportunities and Challenges of Software-DefinedMobile Networks in Network Security,” IEEE Security Privacy, vol. 14, no. 4, pp. 34–44, July 2016.

[22]      M. Liyanage, M. Ylianttila, and A. Gurtov, “Securing the control channel of software-defined mobile networks,” in Proceeding of IEEE International Symposium on a World of Wireless, Mobile and Multimedia Networks 2014, June 2014, pp. 1–6.

[23]      S. Shin and G. Gu, “Attacking software-defined networks: A first feasibility study,” in proceeding of the second ACM SIGCOMM Workshop in hot Topics is software Defined Networking, ser. HotSDN ’13. New York, NY, USA: ACM, 2013, pp. 165–166.  [Online].Available:

[24]      M. Liyanage, A. Braeken, A. D. Jurcut, M. Ylianttila, andA. Gurtov, “Secure communication channel architecture for Software Defined Mobile Networks,” Computer Networks, vol. 114, pp. 32 – 50, 2017. [Online]. Available: 8617300075

[25]      T. Kumar and M. Liyanage and A. Braeken and I. Ahmad and M. Ylianttila, “From Gadget to Gadget-Free Hyperconnected World: Conceptual Analysis of User Privacy Challenges,” in 2017 European Conference on Networks and Communications (EuCNC), June  2017, pp. 1–6.
