Muhammad Nasir1, Muhammad Muzamil Aslam2, Zahoor Ahmed3*,

Anila Arshad 1, *
1Department of Chemistry, Govt. College Women University Sialkot, Pakistan

Received: 10-Dec-2021 / Revised and Accepted: 30-Dec-2021 / Published On-Line: 31-Dec-2021



The objective of our study was to explore novel interactions that can be helpful in the self-assembly of polydimethyl siloxane (PDMS) macro-objects. In this approach, ionic self-assembly of polydiallyldimethylammonium chloride (PDDA) and deoxyguanosine monophosphate (dGMP) molecules were utilized for layer-by-layer (LbL) assembly with an exposed layer of dGMP. The exposed dGMP containing potential tetrahydrogen bonding groups were utilized for the macro-object assembly of PDMS in toluene and disassembly in an aprotic solvent like dimethyl sulfoxide (DMSO) through the breaking of H-bonding. The formation of layers over the surface was characterized by using atomic force microscopy (AFM). Moreover, the assembly-disassembly process was more thoroughly understood by force measurement analysis in different solvents by using a tensiometer instrument. This study will open up the gate for the utilization of further forces to assemble macro-objects by mimicking this approach.

Keywords: Layer-by-layer, self-assembly, macro-objects, PDDA

  1. Introduction:

Ionic self-assembly (ISA) has been emerged as a system for developing controlled nanostructures, it provides a simple method for producing functional materials through a collaborative process [1-3]. The synthesized nanostructures are considered advantageous to the counterparts (covalent in nature) because they make it easier to synthesize by providing mechanisms for property manipulation through the use of a wide range of charged building blocks (or tectons) [4]. By keeping in consideration the advantages of ionic assembly, an increasing attention is tilted towards biological building blocks as starting materials for ISA [5-7]. Ionic self-assembly [1, 8] and hydrogen bonding interaction [9-14] have been separately applied for the self-assembly process.

The assembly process through supramolecular attraction for macro-object is a new advancement in supramolecular science. The importance arises from the fact that it connects the basic research (supramolecular level) for a series of applications in preparation of macro supramolecular materials. A number of driving force are established in recent years to assemble the macro-objects including ionic attractions[15], host-guest molecular recognition [16], capillary interactions [17], DNA hybridization [18], magnetic interactions [19], and coordinate interaction [20].

Herein, a cooperative approach is considered for the ionic interactions along with hydrogen bonding in a systematic way for self-assembly of macro-objects. By using the ionic self-assembly of deoxynucleotide monophosphates (dGMP) with cationic polymer polydiallyldimethylammonium chloride (PDDA) for preorganization of dGMP to form LBL self-assembly [21, 22] on polydimethyl siloxane (PDMS) building blocks. The latter moieties (dGMP) have number of hydrogen bonding accepting and/or donating sites highly capable of multiple bonding architectures, as a result, hydrogen bonding interactions between the building blocks are encouraged. After introducing the quartets H-bonding compound onto the surface of PDMS cubes, they were subjected to macroscopic assembly in non-polar to less polar solvent like n-hexane and toluene. While DMSO an aprotic solvent, was used to break the assembled structure. The assembly-disassembly procedure was carried out several times. Meanwhile, the assembly-disassembly process was more thoroughly understood by force measurement analysis in different solvents by using DCAT21 tensiometer instrument.

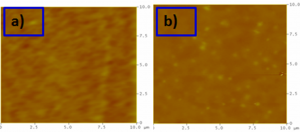

Fig. 1: Plasma treated surface before modification with multilayers b) Prior to modification, the surface was plasma treated with (PAH/PAA)10, (PDDA/PSS)15, (PDDA / dGMP)10

  1. Experimental Part

2.1. Materials

As supplied, the following chemicals were used: poly(sodium-p-styrenesulfonate) (M.W. 70,000) from Acros Organics; poly-(diallyldimethylammonium chloride) (aq, wt 20%, M.W. 200,000-350,000) and dGMP from Sigma-Aldrich; poly(allylamine hydrochloride, branched, M.W. 50000) and poly(acrylic acid) (PAA) (aq, wt 25%, M.W. 240,000) from Alfa Aesar; PDMS (Sylgand 184) from Dow Corning. Other standard chemicals Sinopharm Chemical Reagent Beijing Co., Ltd. provided

2.2. Preparation of PDMS cubes and its plasma treatment

Preparation of PDMS building blocks were carried out by slight modification in our previously developed method [20]. We have used a conventional method for the preparation of PDMS buildind blocks. PDMS pre-polymer, curing agent, and dye particles were mixed at a mass ratio of 10:1:1, stirred for 15 minutes to mix thoroughly. The mixture was evacuated to remove the entrapped bubbles in the mixture. After that it was poured into cylindrical holes of PMMA molds. The PMMA molds were tightly sandwiched between two hydrophobic glass substrates and heated at 65 oC overnight. Then, the PDMS cylinders were de-molded.

Afterward, treated every side of PDMS building blocks (5mmol) with plasma for 5 minute and then immediately immersed into the solution of (3-Aminopropyl)triethoxysilane (APTES) into ethanol, because of the migration of unreacted PDMS oligomers to the surface and the rearrangement of the PDMS polymer chain, the treated PDMS surface frequently regains its hydrophobic properties. They were kept in APTES solution until further use.

  1. Results and Discussion

3.1. Experimental conditions

In order investigate the assembly-disassembly behavior on macroscopic scale, plasma treated building blocks were modified LBL self-assembly. We have modified the cubic building blocks with multiple coatings of PAA and PAH, and then mitigate the adhesions by introducing multiple layers of PDDA/PSS until there was no more adhesive forces present between the building blocks. It is important to mitigate the already present forces in order to avoid the interference in assembly process through h-bonding. After that employing the chemistry of 2′-deoxyguanosine 5’monophosphate (dGMP) for LBL self assembly. We have further added 10 bilayers of PDDA/dGMP onto the surface to introduce H-bonding containing moieties onto the surface. The concentration of dGMP was taken as 0.5 mg/ml.

The number and order of the multilayers are given as:

Plasma treated PDMS, (PAH/PAA)20, (PDDS/PSS)15, (PDDA/dGMP)10

3.2. AFM analysis of plasma treated surface

The fact that PDMS hydrophobic nature frequently hinders its applicability in a n of applications, including the formation of multilayers. A plasma treatment was applied to make the surface hydrophilic. Next, the building units were placed into APTES ethanol solution, the plasma treated PDMS surface may recover their hydrophobic properties, because of the migration of unreacted PDMS oligomers to the surface and the rearrangement of the PDMS polymer chain. AFM analysis reveals that the plasma-treated surface appreciably lessened it roughness with uniform grain size after modification with (PAH/PAA)20, (PDDA/PSS)15, and (PDDA/dGMP)10. Keep your text and graphic files separate until after the text has been formatted and styled. Do not use hard tabs, and limit use of hard returns to only one return at the end of a paragraph. Do not add any kind of pagination anywhere in the paper. Do not number text heads-the template will do that for you.

3.3. Assembly of macroscopic PDMS cubes through tetrahydrogen bonding of dGMP

After formation of required number of multilayers, we have performed the assembly experiment. For every experiment one red and one green dyed building block was put into a separate glass dish and rotated for self-assembly at 160 RPM. The results of the assembly experiment show that immediately after putting the building blocks inside the toluene resulted in assembly, however, rotation was continued for 60 secs in order to ensure the assembly. The assembly phenomenon was confirmed by picking the assembled pair with help of twizzer outside the solvent.

Fig. 2. Demonstrating the assembled structure through H-Bonding. a) macro-object before assembly b) the assembled pairs after rotation in separate glass dishes in toluene c) assembled pairs were stable enough to be picked up by twizzer.

3.4. Disassembly of macroscopic PDMS cubes through breaking of tetrahydrogen bonding of dGMP

In order to carry the assembly experiments, we have used toluene for the assembly and DMSO for the disassembly. But previously we know that the multilayers were not very stable in the organic solvents and can be ruptured or completely remove from the surface. So in order to stabilize the multilayers we have applied the plasma treated surface that can increase the adhesion strength between the multilayers and may be helpful to avoid the rupturing of the film, associated with the use of DMSO.

The use of aprotic solvent DMSO resulted in breaking of H-bonding and ultimately disassembly.

Plasma Treated PDMS, (PAH/PAA)10, (PDDA/PSS)15, (PDDA/dGMP)10 in toluene

Plasma Treated PDMS, (PAH/PAA)10, (PDDA/PSS)15, (PDDA/dGMP)10 in DMSO

Fig. 3. Demonstarting the assembly of H-bonded building blcoks in toluene and disassembly in DMSO

3.5. Re-assembly of macroscopic PDMS cubes through tetrahydrogen bonding of dGMP

By utilizing this system, sometime we can get assembly-disassembly of building blocks but the re-assembly seems to be difficult. The reasons involved for the lack of re-assembly is either the presence of solvents on the surface or the rupturing of film from the surface.

The disassembly of the building blocks was done by rotating them in polar aprotic solvent DMSO. After putting out the PDMS cubes from the DMSO and again placing them in toluene the building blocks will not been able to assemble. The reason why they were not being able to re-assemble is the presence of left over solvent on the surface but if the building blocks were washed with water and again putting them in toluene they can be reassemble again. This process was repeated 2 times with 3 pair of building blocks.

Hence, reassembling of the building blocks was only done when the building blocks were first washed with water to remove the excess of left over DMSO on the surface, while directly putting the DMSO treated blocks inside toluene never resulted in reassembly. After reassembling the building blocks, force values were measured as they give clearly evidence about the improvisation of system in different solvents.

3.6. Force measurements method

To quantitatively validate the assembly-disassembly phenomenon, we used a one-of-a-kind in-situ force measurement method to determine the adhesive strength between assembled building blocks in different solvents. A tensiometer instrument was used to measure the force between interactive PDMS building blocks.

3.7. Force measurements in different solvents

The assembly-disassembly phenomenon is understood further through in-situ force measurement. We have previously performed assembly experiments in toluene and disassembly them in DMSO. This phenomenon can be well proven by measuring the force values in respective solvent. I have measured the force in four different solvents varying in polarity i.e., water, DMSO, toluene and n-hexane.

The results obtained shows the fact that the force between the building blocks is higher in non-polar solvents, the average force measurement value were 0.35668 ± 0.149, 0.3211 ± 0.087, 0.102 ± 0.0405 and 0.00534 ± 0.00136 in n-hexane, toluene, water and DMSO respectively. The values of force measurement differ in different solvents. These values were higher in less polar solvent like n-hexane and toluene while considerably less in polar protic and aprotic solvent like water DMSO respectively. Less polar solvent will have less dielectric constant and hence allowing the hydrogen bonding between dGMP moieties. On the other hand, water is polar protic solvent, so the force value was higher when compared with less polar solvents. In case of aprotic solvent DMSO, will not allow H-bonding between dGMP, therefore, the force values were very less.

Our results can be used to interpret the assembly-disassembly phenomenon that the non-polar solvents were helping in the assembly between the building blocks, while polar protic and aprotic solvent can be used to disassemble the building blocks. These force value can clearly evidence about the improvisation of system in different solvents.

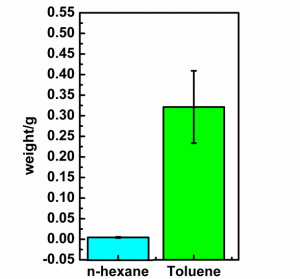

Fig. 4. Force measurement between the building blocks in different solvent at 120 seconds for the attachment

3.8. Role of time on force constant

Additionally, we have measured the force value through by another factor. The force measurement values show the fact that providing the long time for the assembly provides enough time for the building blocks to adjust the underneath flexible spacing coating and hence the interactive groups can form strong association at long attachment time.

The value of force measurement obtained at 20 seconds is 0.33 ± 0.09, while the force value decreased considerably to 0.07 ± 0.03 for 20 seconds. Hence it’s very clear that the providing higher time for assembly helps to deform the underneath flexible coating to allow enough interactive groups to come into contact.

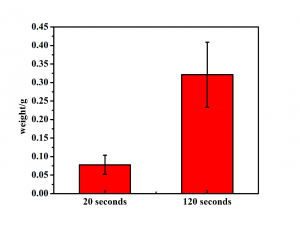

Fig. 5. Force measurement between the building blocks in toluene at 20, 120 seconds for the attachment


In summary, we have developed an assembly-disassembly system of macro-object by utilizing the reversible, multiple hydrogen bonding nature of dGMP. PDMS building blocks were used as a model system and employed the ionic self-assembly of deoxynucleotide monophosphates and PDDA to organize H-bonded groups onto the surface. Our results interpret the assembly-disassembly phenomenon, the non-polar to less polar solvents successfully assembled the building blocks, while aprotic solvent were used to disassemble them. The force measurement values in different solvents support this behavior.

Author’s Contribution: Whole contribution belongs to Dr. Anila Arshad. She has designed, performed and write up the manuscript.

Funding: The publication of this article was funded by no one.

Conflicts of Interest: The authors declare no conflict of interest.

Acknowledgement: N.A
